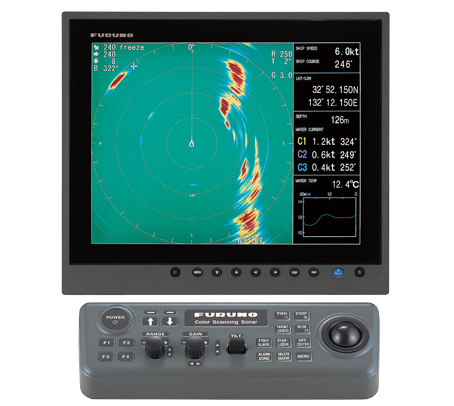

FULL-CIRCLE SCANNING SONAR CSH-5L MARK-2
High power transmitter for long range fish detection and determining changing seabed conditions
Features
Fullcircle scanning sonar detects and instantaneously displays fish schools and underwater conditions
Vivid 16color display assists in recognition of bottom structure, concentration and distribution of fish schools
Various fishing and navigation data* keeps operator abreast of fishing and navigation
conditions
Four userprogrammable function keys for quick set up according to fishing conditions or specific functions

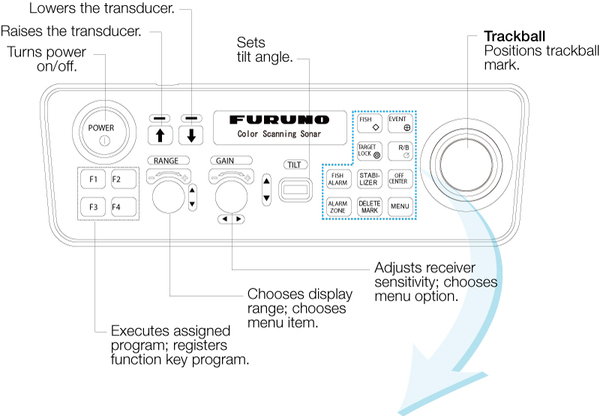

The control unit of CSH-5L MARK-2 combines ergonomics and functions in a user-friendly manner. All controls quickly respond to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-defined functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation.
High power transmitter ensures reliable operation under any conditions
Transducer frequency: 55 or 68 kHz

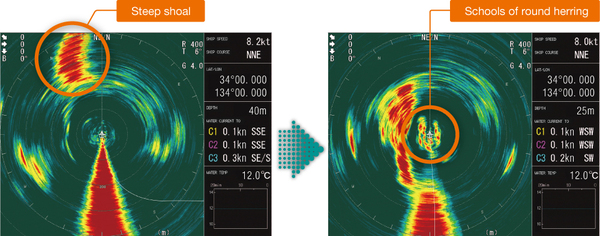

With the CSH-5L MARK you can confidently fish in shallow areas and increase your catch
Specifications
General
Frequency：55 or 68 kHz
Basic Range：50, 85, 100, 200, 250, 300, 350, 400, 450, 500, 600, 800, 1000, 1200, 1600 m
Display Unit
Display unit：15" color LCD FURUNO MU-150HD, or PC monitor, 1024 x 768 pixels (XGA)
Pixel number：XGA (1024 x 768)
Colors：Scan/echo: 16 colors, mark: 1color
Power Supply
Processor Unit：115/230 VAC, 50-60 Hz, 0.4 kVA (Raise 1 kVA)
24 VDC with optional DC-AC inverter
Weight：Processor unit: 3.4 kg/Transceiver unit: 20 kg
Control Unit: 3.5 kg
Hull unit: 70 kg (400 mm travel), 75 kg (600 mm travel)
Equipment List
Standard
PROCESSOR UNIT：CSH-5210-A
CONTROL UNIT：CSH-5211 -A
TRANSCEIVER UNIT：CSH-5130-A-5L
PRE-AMP UNIT：CSH-5020-A
Hull Unit：400 mm or 600 mm travel
Installation Materials, Accessories and Spare Parts

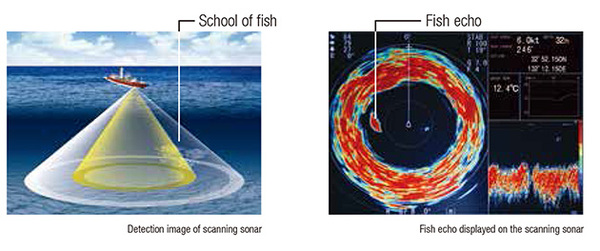

What is Scanning Sonar?
The transducer of a scanning sonar consists of many elements to transmit the echo in all directions simultaneously without rotating the transducer. The echo is redrawn on the display instantaneously according to the latest feedback from the transducer. Because this sonar scans quickly, it greatly improves the fishing operation, especially when searching for/following fast swimming fish.
Extremely Quick Scanning Speed
The CSH-5L MARK-2 completes a scan within 0.54 seconds/scan while the conventional PPI sonar*1 takes 32 seconds to train full circle under the same range/conditions*2.
About 60 times more information is provided compared to a PPI sonar.
Fast scanning lessens the chance of missing a small change in underwater conditions. This is especially helpful when range and tilt require frequent adjustment while fishing, offering no frustration on redrawing time.
*1 CH-250 PPI sonar, training at 6° steps.
*2 Based on 400 m range in combination display mode.

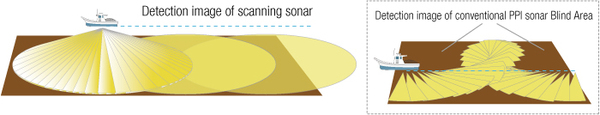

No Blind Area
Scanning Sonar shows the actual situation 360 degrees around the vessel, and gives all the necessary information as needed. No more blind areas to consider, allowing the operator to concentrate on the tilt, range, fishing area, etc.
