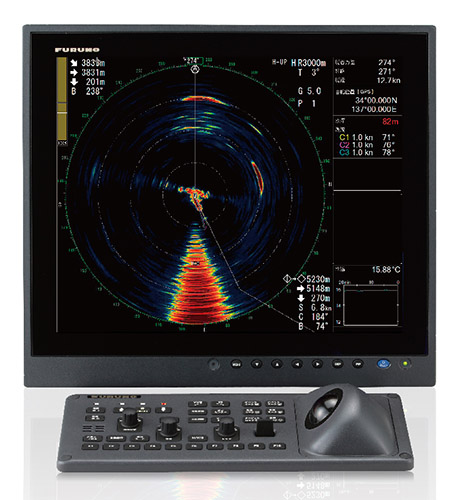

FULL-CIRCLE COLOR SCANNING SONAR FSV-25/25S
Stunning performance, amazing range with FSV-25/25S!
With new 3D Sonar Visualizer™ F3D-S (optional application) you can see fish and sonar information in a 3 dimensions, "real world" view.
Features

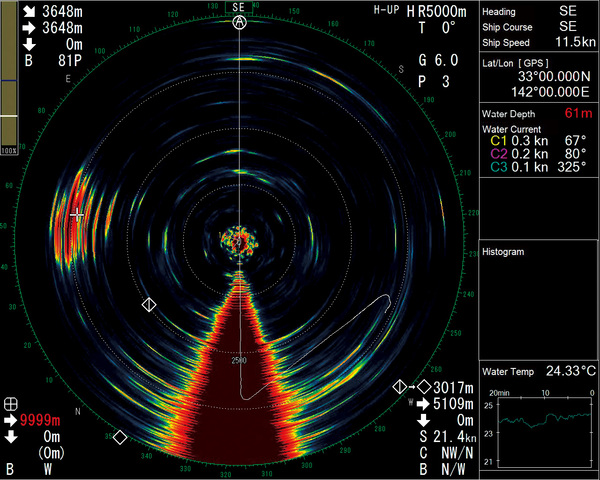

Maximum detection range increased by 30%
Thanks to recent advancements in low-frequency transducer elements, signal processing and increased transmission power, detection range has been increased by a full 30%*. You can instantly spot and follow schools of fish from several kilometers away.
Compared with FSV-24/35. Performance may vary depending on depth, range and signal frequency used.
Improved resolution with new signal compression algorithms

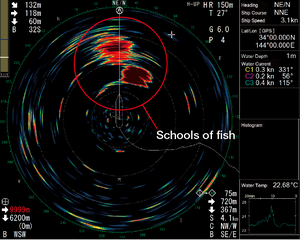

Left image: (150 m range) Schools of tuna and skipjack tuna spotted.

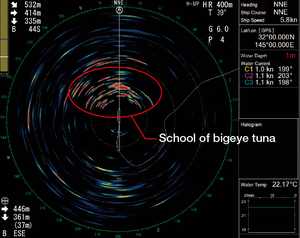

Right image: (400 m range) Individual bigeye tunas can be seen in this school of fish.
Fully extend the transducer in just 12 seconds for 1200 mm stroke and in 16 seconds for 1600 mm stroke
A transducer “throw” time of just 12/16 seconds (respectively) places the FSV-25 among one of the fastest hull units available. You can extend and retract the transducer rapidly for smooth operation.
Stop function when extending and retracting transducer
In order to avoid collisions with drift wood and other material, the transducer can be stopped while in motion. The transducer can be lowered to any given length until full extension.
Stabilization function for unwavering performance
The stabilizer ensures that echoes are stable when received, regardless of transducer attitude, counteracting the rolling and pitching motions at sea.
Automatically track schools of fish with target lock function
FSV-25 will automatically lock on schools of fish found and display estimates of distance, depth, speed and angle of movement. Target lock is also available for stationary positions (speed and heading information required).
Auto filter for clear and uninterrupted performance
The auto filter ensures that you get clear and crisp echoes even when travelling at speed. The auto filter is also highly effective against interference from other fishfinder equipped vessels.

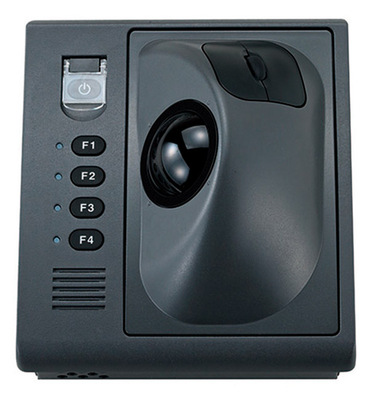

Accurate control with large physical control unit

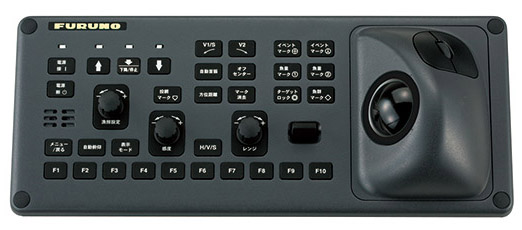

Wired Remote and Sub Control Unit available
Specifications
General
Scanning：Full digital beam forming
Frequency：20 kHz
Basic Range：FSV-25: 60 - 5000 m, 18 steps/FSV-25S: 60 - 10000 m, 23 steps
Audio Search：30°, 60°, 90°, 180°, 330° selectable
Display Unit
Pixel number：1280x1024 (SXGA), 1600x1200 (UXGA), 1920x1200 (WUXGA)
Colors/32 colors (sonar picture), 6 colors (marks)
Display mode：Head-up, North-up*, Course-up* and True motion*
* sensor required
Additional functions：3D sonar expression (with 3D Sonar Visualizer F3D-S) in the additional display
Transceiver Unit
PDM half-bridge
Straight amplifier, full digital beam forming
Beam width (horizontal)
TX: 360° x 7°, RX: 12° x 10° (-3 dB full width)
TX: 360° x 10°, RX: 16° x 14° (-6 dB full width)
Beam width (vertical)
TX: 360° x 29°, RX: 12° x 10°(-3 dB full width)
TX: 360° x 47°, RX: 18° x 13°(-6 dB full width)
Tilt：-5° to 60° (downward)
Maximum Depth：0° to 60° (downward)
Hull Unit
Raising/Lowering time：FSV-253: 12 s/FSV-254: 16 s
Transducer Travel：FSV-253: 1200 mm travel/FSV-254: 1600 mm travel
Interface
Ports
IEC61162-1/2: 3 ports (NMEA0183 Ver1.5/2.0/3.0)
CIF: 2 ports
Contact signal: 1 port (input, speed)
External KP: Input; 1 port, Output; 3 ports, TTL level
NMEA0183
Input: CUR, DBS, DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MDA, MTW, MWV, RMA, RMC, VBW*1, VDR, VHW, VTG, VWR, VWT, ZDA
Output: TLL
*1: Fore-aft and port-stud speeds required.
CIF data
System clock, Position, Bearing, First layer current data, Water depth, Water temperature, Sonde depth, Ship’s speed/course data, Multi-layer current data, Net depth, Wind speed/direction, Sonde number
Power Supply
Processor Unit：12-24 VDC: 10-5A includes I/F unit (48 VDC)
Power supply unit：100/110/115/220/230 VAC: 14 A max, 1 phase, 50/60 Hz Output for transceiver unit: 200 VAC, 1 phase, 50/60 Hz
Hull Unit：200-220 VAC: 16 A max, 3 phase, 50/60Hz
Rectifier：RU-1746B-2, 100/110/115/220/230VAC, 1 phase, 50/60Hz (Option)
Environment
Temperature：Processor unit: 0°C to +45°C
Hull unit: 0°C to +35°C
Others: 0°C to +50°C
Relative humidity：93% or less at +40°C
Waterproofing：Control Unit (Panel): IPX2, (Chassis): IPX0
Processor Unit, Interface Unit: IPX0
Transceiver Unit, Power Supply Unit, Junction Box: IPX2
Hull Unit: IPX2/Transducer: IPX8
Others
Weight
Control Unit: 3.8 kg
Processor Unit: 15 kg
Hull Unit (1200 mm): 1390 kg
Hull Unit (1600 mm): 1440 kg
Transceiver Unit: 138 kg
Interface Unit: 3.4 kg
Equipment List
Standard
Control Unit (Cable 5/10 m)
Interface Unit：FSV-8502
Processor Unit：FSV-2503
Transceiver Unit：FSV-251
Power Supply Unit：FSV-252
Junction Box：FSV-2550
Hull Unit：FSV-253/254
Installation Materials：1
Spare Parts：1
