12.1" SEARCHLIGHT SONAR CH-500
Unmatched training speeds and High resolution echoes
Smart features for productive fishing
Features

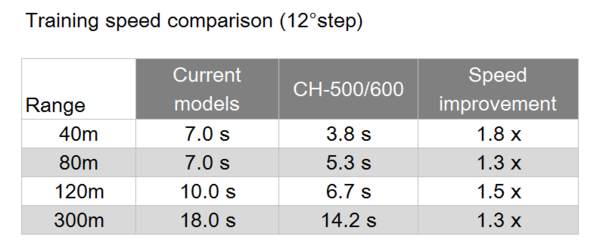

Incredibly fast training speed
Faster motor delivering quicker training speeds 【NEW】
Faster training speed can aid in earlier detection regarding fish targets or obstruction avoidance.
6 step angles for speed adjustement according to the user's needs 【NEW】

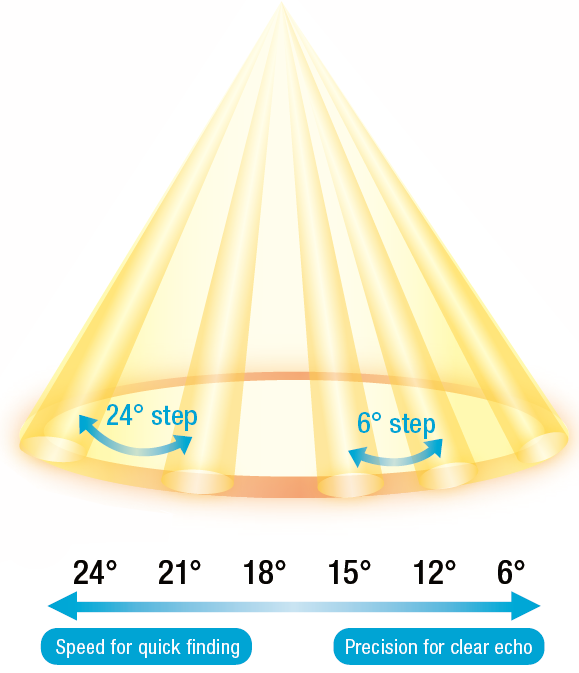

This CH500 sonar is one of the most comprehensive and fastest sonars of its kind. It provides 6 selectable step variations (6°,12°,15°,18°,21° and 24°) for high scanning speed that can cover sectors widths from 24° to 360° in a couple of seconds. Thanks to its high training speeds, the CH-500 can rapidly scan a large area providing the ultimate fishing and navigational experience.

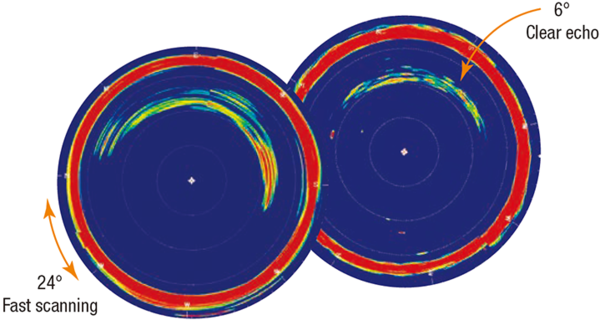

Expert tip: While moving fast, use the 24° step scan in order to get a glimpse of the surroundings. If you detect something interesting, slow down and switch to a decreased step angle for clearer echoes.
Smart features to efficiently find local fish
■ Builtin motion sensors provide a stabilized target presentation in rough sea
conditions 【Standard equipment】
The CH-500 searchlight sonar is the first of its class to have integrated motion sensors.
In rough seas, vessels tend to move in every direction. This movement can cause inaccurate target information to be displayed. The role of the integrated motion sensors is to precisely compensate for those negative effects and provide accurate data to the user.

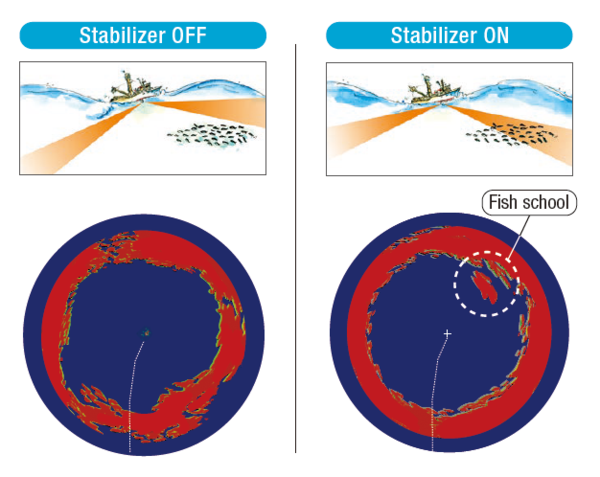

In the right hand picture above, you can see that once the stabilizer is activated, the bottom echo recovers its circular shape. The sonar is then able to provide accurate data in different sea conditions. Thanks to its integrated motion sensors, the CH-500 is able to detect fish that didn’t appear with the non-stabilized echo.
Reverberation reduction function 【NEW】
The reverberation reduction offers both better understanding and better appreciation of

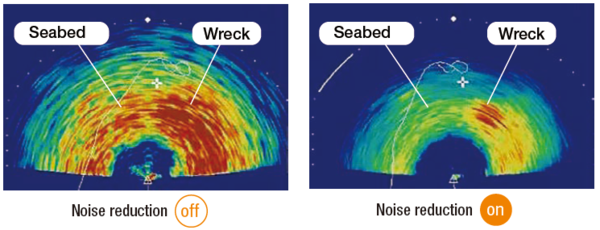

the nature of detected echoes. Below is an example of how the Reverberation reduction function highlights the wreck from the surrounding seabed. .
*The echo may be subject to interferences from other Fish Finders
*Schools with excessivly high density may appear with a weaker echo color
■ Full-circle A-Scope mode and audible target detection

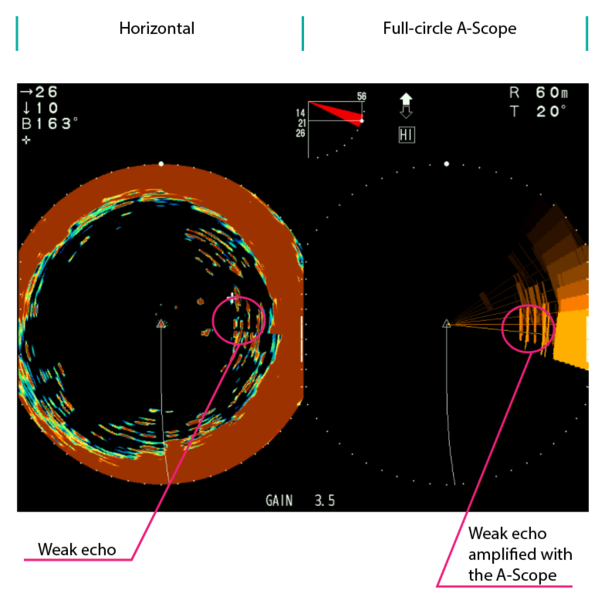

The A-Scope mode shows the last detected echoes with one single color. The nature of the target can be quickly understood as the size of the echo is greatly amplified and even the smallest echoes are shown.
*The more opaque the color, the latest the echo.
Various display modes
11 display modes for various situations.
・Horizontal
・Horizontal (zoomed)
・Vertical
・Echo sounder
・Full-circle A-Scope
・Horizontal/History
・Horizontal/ Full-circle A-scope
・Horizontal/ vertical (split)
・Horizontal/ Vertical (side window)
・Horizontal/ A-Scope
・Echo Sounder/ A-Scope
Image clarity and high resolution echoes

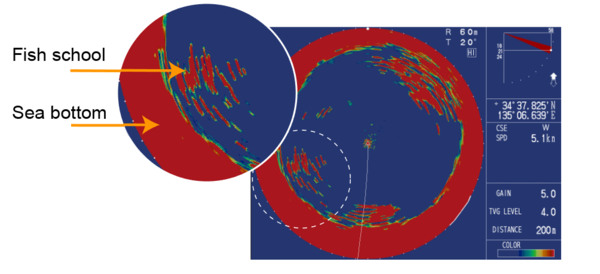

Higher resolution due to advanced signal processing【NEW】
A powerful signal and image processing techniques, based on a unique interpolation technology, provides images in high resolution. Even if the fish are located near the seabed, the different echoes are clearly shown and easy to understand. The higher resolution display yields a presentation that is crisp and clear.
Semi-transparent menu 【NEW】
Keep an eye on the targets while changing the settings in the menu thanks to a semi-transparent window
Designed for all environments

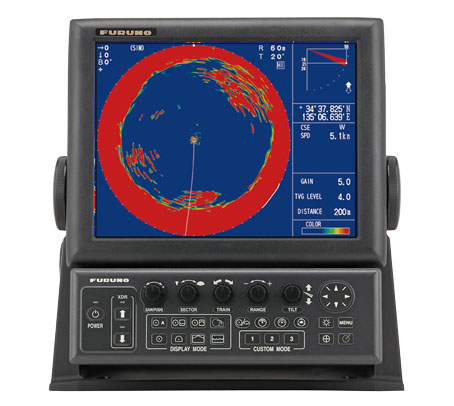

12.1 inch, High brilliance display (XGA)
Water-resistant to withstand the most rigorous environments
Display unit (MU-121) Control Unit (CH-502), Hull unit and Transceiver unit are all water-resistant (IP55)

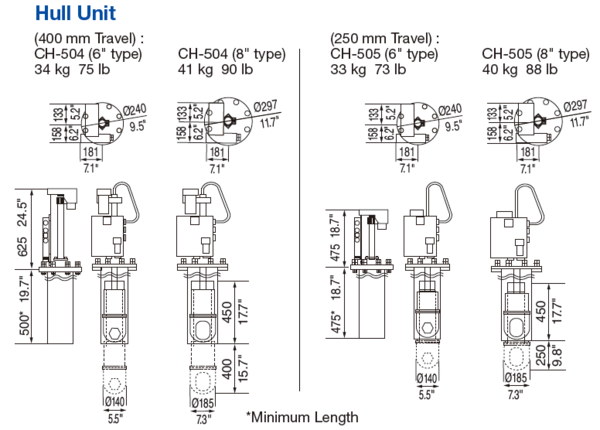

Hull unit offering various installation possibilities
・ 5 choices of frequency (60/88/150/180/240Khz)
・ 2 types of stroke 250/400mm, 5 lengths of shaft, various cable lengths
・ 2 types of power supply (VDC 12/24)
Blackbox configuration allowing use of other displays
Users can install their favorite HDMI monitor (local supply) if choosing the black box configuration
12 languages available
English, Thai, Vietnamese, Chinese, Spanish, Indonesian, Malay, Burmese, French, Norwegian, Italian, Japanese
Specifications
General
Frequency：60/88/150/180/240 kHz (Selectable)
Basic Range：10m ~ 2400m, 15 steps
Display Unit
Display unit：12.1" Color LCD Display
Pixel number：XGA (1024 x 768)
Colors
Echo color: 32, 16 or 8 colors (Selectable)
Back-ground: 3 colors selected (Selectable)
Display mode
Normal screen: Horizontal, Horizontal (zoom), Vertical, Full-circle A-Scope, Echo Sounder
Split screen: Half-Horizontal + Vertical, Horizontal + vertical, Horizontal + Full-circle A-scope, Horizontal + A-Scope, Horizontal + History, Echo Sounder + A-Scope
Transceiver Unit
Output Power：0.8 kW to 1.5 kW (depending on frequency)
TVG
Level: 100 dB max, Distance: 1000 m max
Audio Output：2 W (8 ohms)
Frequency 0.9 to 1.2 kHz(external speaker required)
Hull Unit：Raising/Lowering time
30 s st 400 mm travel, 20 s at 250 mm travel
Allowable Ship's Speed
20 kn or less (15 kn during raise/lower operation)
Interface
Ports
●Video signal output : 1 port, HDMI, XGA
●NMEA0183 : 2 ports, V1.5/2.0/3.0/4.0/4.1, 4800/9600/19200/38400 bps
●NMEA2000 : 1 port
●External KP : 1 port. I/O
Power Supply
Power supply unit：12-24 VDC: 4.7-2.3 A
Hull Unit：12-24 VDC: 2.2-1.1 A
(7.2/3.6 A: during raising)
Rectifier
100/110/115/220/230 VAC, 1 phase, 50/60 Hz, 13 A max
Environment
Temperature
Display/Transceiver/Control Unit: -15°C to +55°C
Hull Unit 0°C to + 55°C
Waterproofing
Display/Control Unit IP55
Transceiver/ Hull Unit IP22
Others
Weight
Display Unit: 4.0 kg , 9 lb
Transceiver Unit: 3.3 kg , 7.2 lb
Hull Unit: 41 kg , 90 lb (Travel: 400 mm), 40 kg , 88 lb (Travel: 250 mm)
Equipment List
Standard
Display Unit
MU-121C
Control Unit
CH-502
Transceiver Unit
CH-503
Hull Unit*
CH-504 (400 mm transducer travel)
CH-505 ( 250 mm transducer travel)
*Depending on the selected configuration
Installation Materials and Spare Parts
Drawing

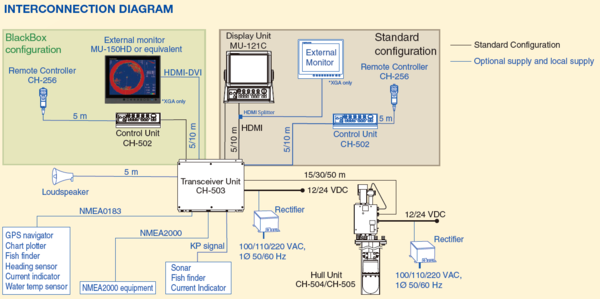

Interconnection Diagram
