FULL-CIRCLE SCANNING SONAR CSH-8L MARK-2

A compact, high frequency sonar with revolutionary discrimination between bottom fish and seabed

Features

Full-circle scanning sonar detects and instantaneously displays fish schools and underwaterconditions

Vivid 16color display assists in recognition of bottom structure, and concentration and distribution of fish schools

Various fishing and navigation data* keep operator abreast of fishing and navigation conditions *appropriate sensors required

Four user-programmable function keys for quick set up according to fishing conditions or specific function

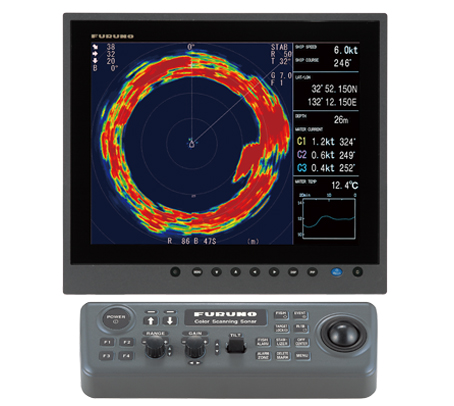

The control unit of CSH-8L MARK-2 combines ergonomics and functions in a user-friendly manner. All controls quickly respond to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-defined functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation.

High power transmitter ensures reliable operation under any conditions

Transducer frequency : 85 kHz

Specifications

General

Basic Range

50, 85, 100, 200, 250, 300, 350, 400, 450, 500, 600, 800, 1000, 1200, 1600 m

Display Unit

Display unit

15" color LCD FURUNO MU-150HD, or PC monitor, 1024 x 768 pixels (XGA)

Pixel number：XGA (1024 x 768)

Colors：Scan/echo: 16 colors, mark: 1color

Power Supply

Processor Unit

115/230 VAC, 50-60 Hz, 0.4 kVA (Raise 1 kVA)

24 VDC with optional DC-AC inverter

Others

Weight

Processor unit: 3.4 kg

Transceiver unit: 20 kg

Control Unit: 3.5 kg

Hull unit: 70 kg (400 mm travel), 75 kg (600 mm travel)

Equipment List

Standard

PROCESSOR UNIT

CSH-5210-A

CONTROL UNIT

CSH-5211-A

TRANSCEIVER UNIT

CSH-8030-A-8L

Hull Unit

400 mm or 600 mm travel

Installation Materials, Accessories and Spare Parts
