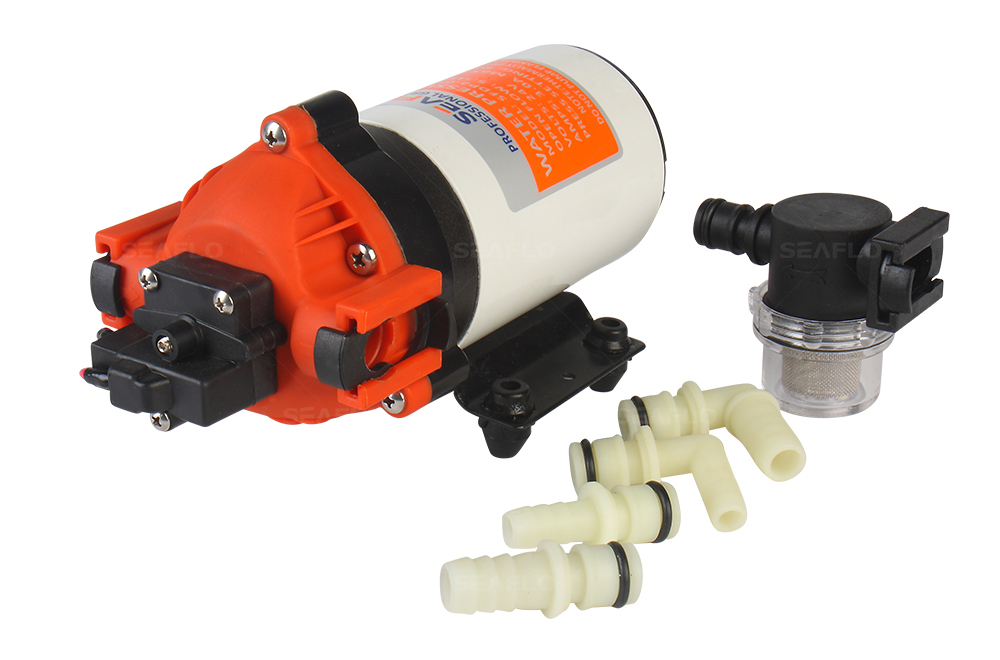

SEAFLO 35 Series DC Diaphragm Pump 12V/24V 2.0-8.0LPM 17-160PSI
The 35-Series is our continuous-duty on-demand positive displacement pump. Quick-Attach fittings allow for easy installation or replacement. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the fixture is opened and closed. They are easy to install, service and winterize.
ORE FEATURES & BENEFITS
- Continuous Duty&Run dry safe.
- Self priming.
- Quick connect clip-in fittings. | - 18AWG,4.5＂long Leads.
- Industry standard mounting pattern.
- 2 Year Warranty.
- Meets or exceeds RoHS, SGS, and ISO standards. |
TYPICAL APPLICATIONS
Marine,RV,Agricutural Spraying,General Industial,Filtration,Beverage Processing,Solar Water System.
| PUMP |
| Type | 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 80 PSI : 65 PSI ±5 PSI(±0.3 bar) |
| Inlet/Outlet Ports | 5/8" (16 mm) QUICK ATTACH |
| Weight | 5.2 lbs (2.3 kg) |
|
|
| MOTOR |
| Leads | 16 AWG, 13" (33 cm) long with 2-Pin connector / Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 9.0 A |
| Fuse | 13.5 A |

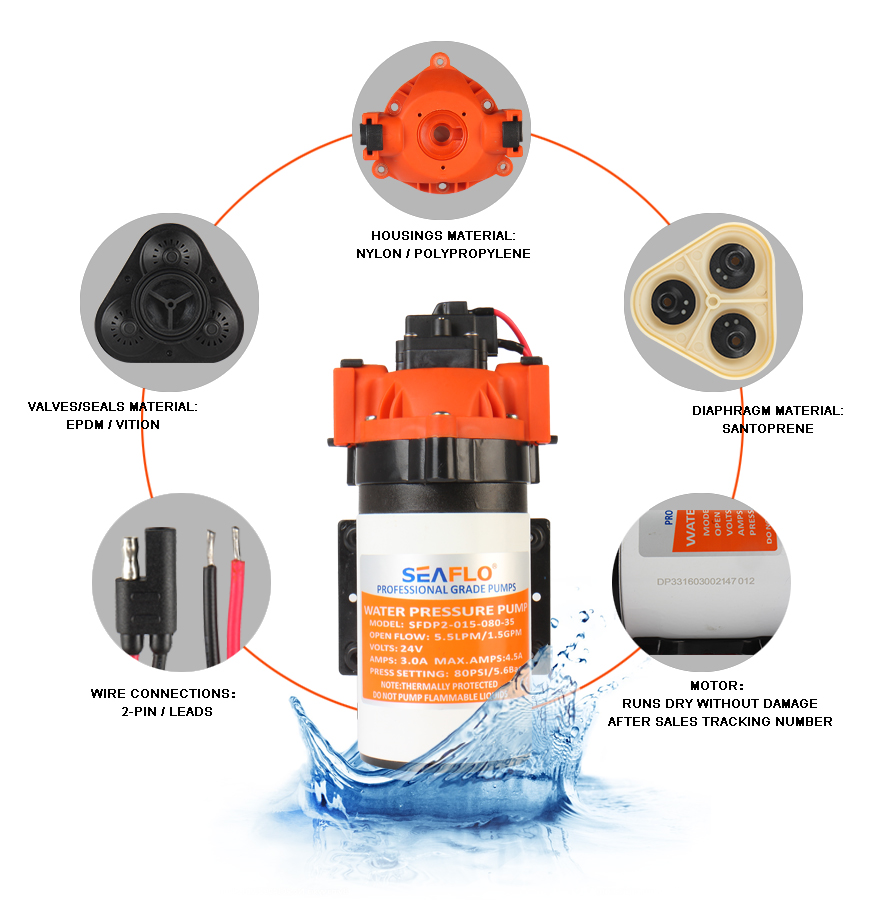

STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow
（GPM/LPM） | Control Type | Max Draw | Shut-off Pressure
（PSI/BAR) | Valves | Diaphragm | Ports | Wire Connections |
| SFDP1-015-080-35 | 12V | 1.5 / 5.5 | Switch | 8.0 | 80 / 5.5 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP2-015-080-35 | 24V | 1.5 / 5.5 | Switch | 4.5 | 80 / 5.5 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP1-018-080-35 | 12V | 1.8 / 7.0 | Switch | 9.0 | 80 / 5.5 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| SFDP2-018-080-35 | 24V | 1.8 / 7.0 | Switch | 4.5 | 80 / 5.5 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
Consult factory for other available models.

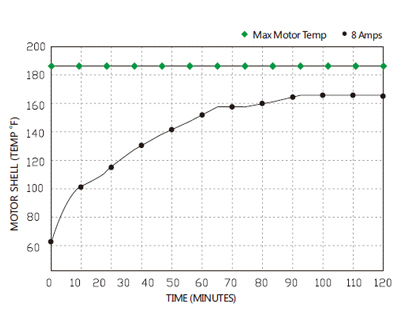

HEAT RISE
DIMENSIONS

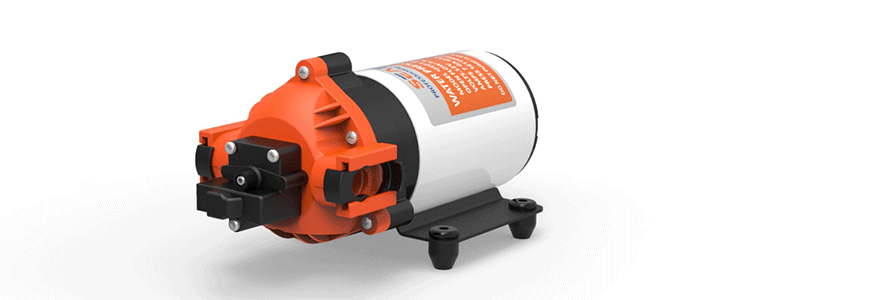

PRODUCT DETAILS
| Key | Description | Quantity |
| A | Pump Head Assembly | 1 |
| B | Valve Assembly | 1 |
| C | Diaphragm Assembly | 1 |
| D | Motor Assembly | 1 |
| 1 | Pressure switch | 1 |
| 2 | Diaphragm of Pressure Switch | 1 |
| 3 | Quick Attach Clip | 2 |
| 4 | Pump Head | 1 |
| 5 | Diaphragm | 1 |
| 6 | Rubber Feet | 4 |
| 7 | Iron Base Plate | 1 |
| 8 | Motor | 1
|
