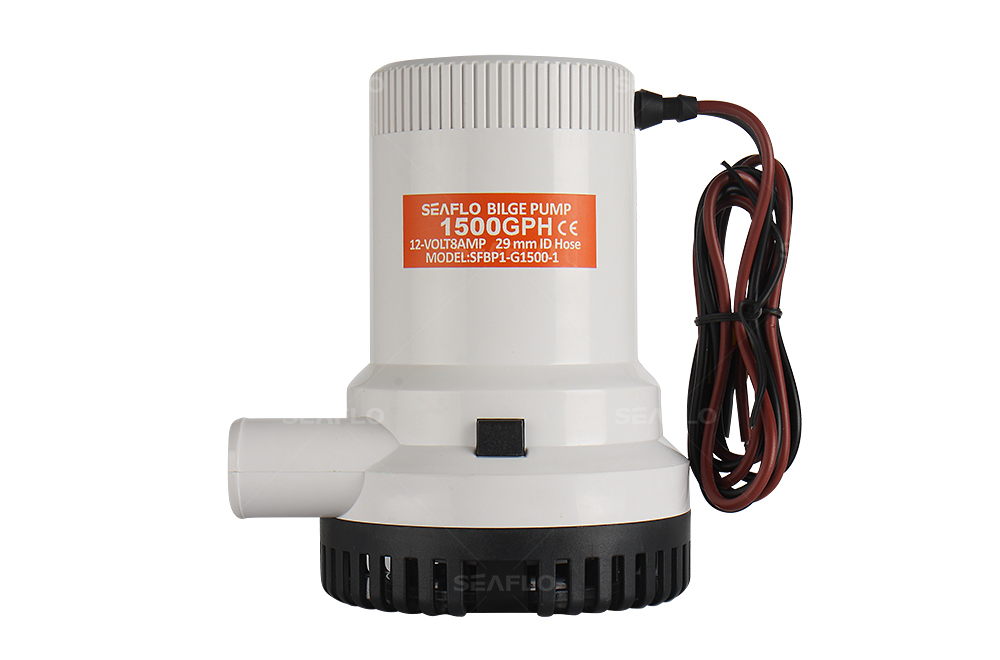

SEAFLO 01 Series 1500GPH Seaflo Bilge Pump
SEAFLO non-automatic 1500GPH bilge pumps offer standard action activated by a panel or float switch.Small size, high efficiency, low current (low cost switching power supply supporting).Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.Availalble for DC 12 Voltage & 24 Voltage.

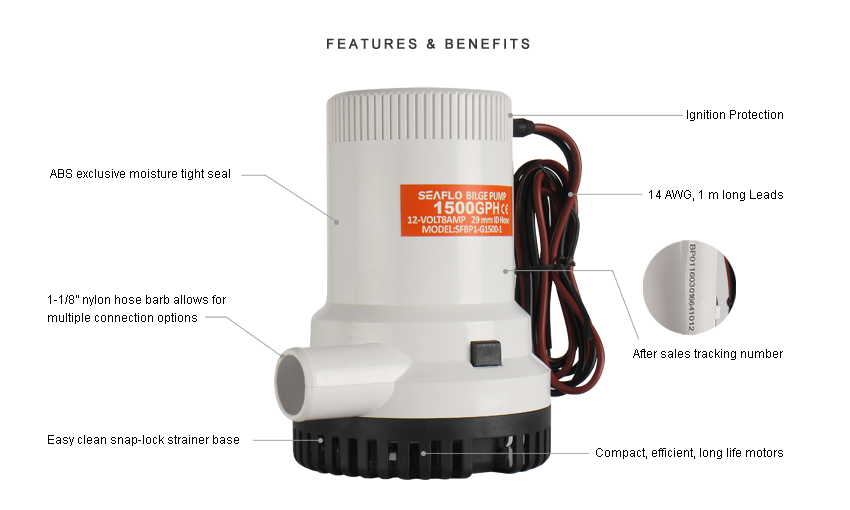

MORE FEATURES
| - 2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards
- Traditional operation by switch or float switch
- Entirely submersible - Snap-off strainer base for easy maintenance - Pump and switch are stand alone products - Sealed efficient,long life motors | - Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft - Anti-Airlock protection - Exclusive moisture tight seals - Marine grade blocked wiring |
Marin

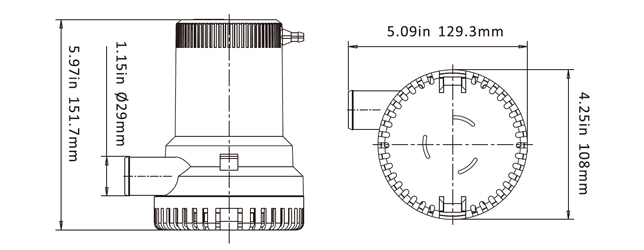

DIMENSIONS
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G1500-01 | 1426 GPH | 12 V | 12.0 A | 12.0 A | 11.8' (3.6 m) | 3' (1 m) | 1-1/8" | 1.13/1.21 kg |
| SFBP2-G1500-01 | 1407 GPH | 24 V | 6.9 A | 7.0 A | 11.8' (3.6 m) | 3' (1 m) | 1-1/8" | 1.13/1.21 kg |

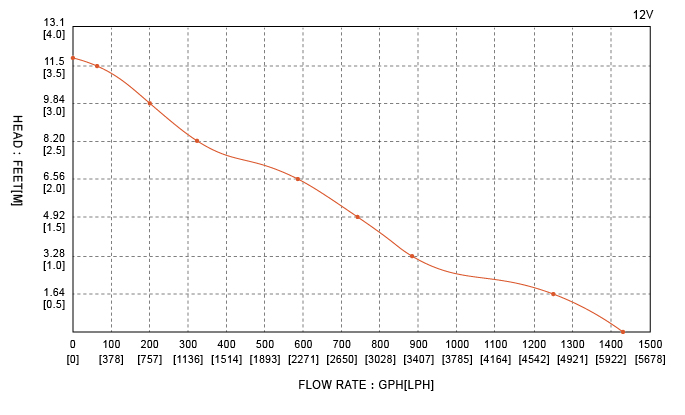

PERFORMANCE
Voltage(V) | Current(A) | Flow | Head(M) | GPH | LPH | | OPEN | 5.8 | 1426 | 5396 | 0 | | 12 | 6.33 | 1255 | 4749 | 0.5 | | 12 | 6.95 | 888 | 3360 | 1 | | 12 | 7.25 | 745 | 2819 | 1.5 | | 12 | 8.05 | 589 | 2229 | 2 | | 12 | 9.85 | 321 | 1215 | 2.5 | | 12 | 10.42 | 201 | 761 | 3 | | 12 | 11.62 | 76 | 288 | 3.5 | | 12 | 12 | 0 | 0 | 3.6 |
|
| oltage(V) | Current(A) | Flow | Head(M) | GPH | LPH | | OPEN | 3.13 | 1407 | 5324 | 0 | | 24 | 3.45 | 1211 | 4583 | 0.5 | | 24 | 4.15 | 865 | 3273 | 1 | | 24 | 4.77 | 724 | 2740 | 1.5 | | 24 | 5.03 | 577 | 2184 | 2 | | 24 | 5.58 | 305 | 1154 | 2.5 | | 24 | 6.15 | 188 | 711 | 3 | | 24 | 6.74 | 84 | 318 | 3.5 | | 24 | 6.9 | 0 | 0 | 3.6 |
|

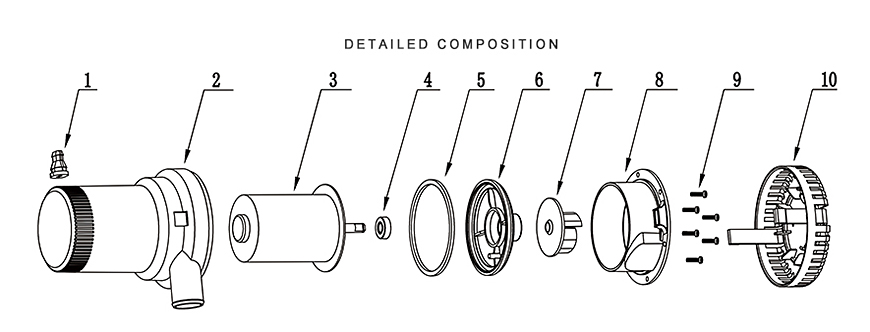

| Key | Description | Quantity |
| 1 | Wire Buckle | 1 |
| 2 | Pump Housing | 1 |
| 3 | Motor | 1 |
| 4 | Seal Base | 1 |
| 5 | Seal | 1 |
| 6 | Motor Bracket | 1 |
| 7 | Impeller | 1 |
| 8 | Pump Cover | 1 |
| 9 | Tapping Screw | 6 |
| 10 | Strainer | 1
|
