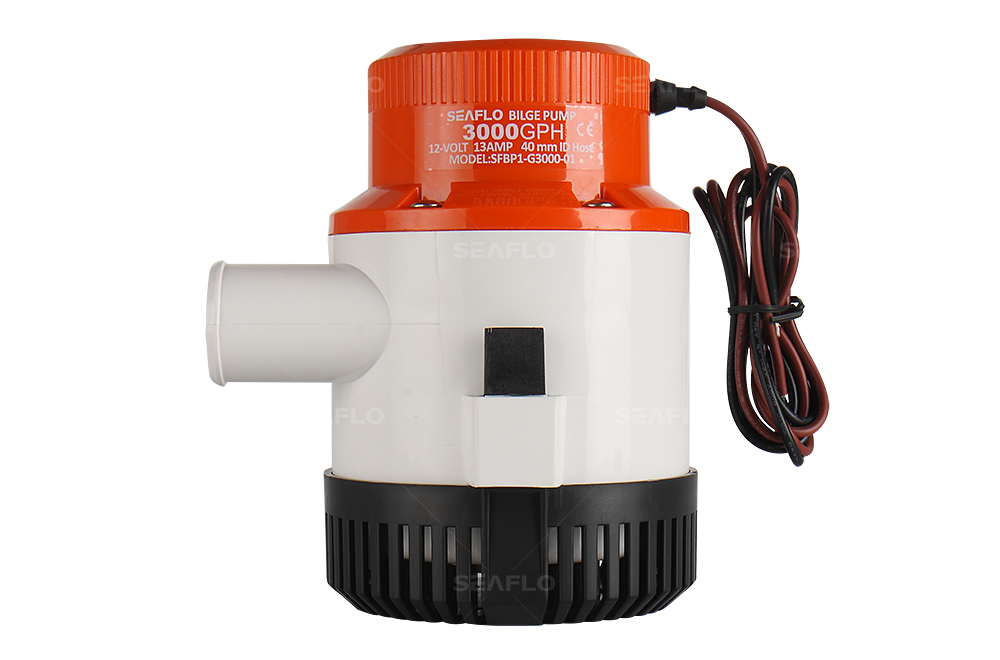

SEAFLO 01 Series 3000GPH Seaflo Bilge Pump
SEAFLO 12v Boat Marine Plumbing Electric Bilge Pumps ,also is non-automatic 3500GPH bilge pumps with high efficiency.,heavy duty motors, offer high capacity output. Very powerful pump. Works great and drains pretty fastQuick release strainer for easy maintenance,.Apply for water sampling, high-volume liquid transfer, low-noise continuous workplace; Large aquarium, small swimming pool, water reservoirs, fountains and many other occasions

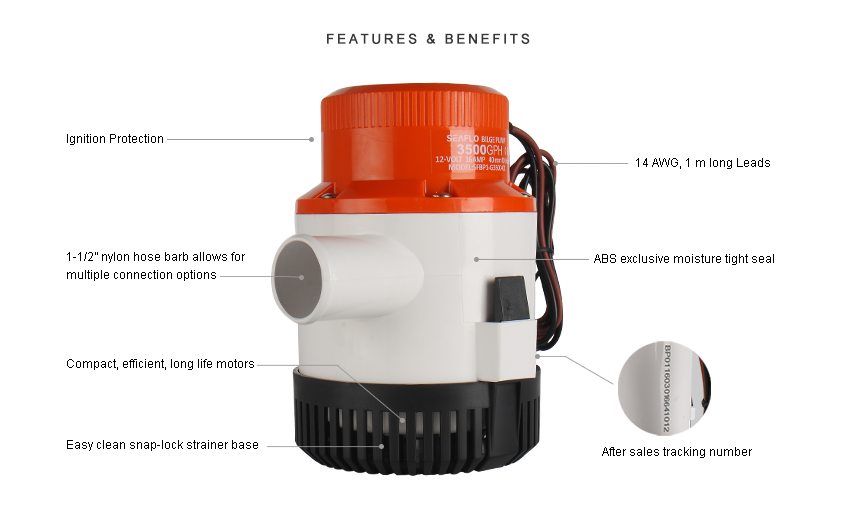

MORE FEATURES
| - 2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards
- Traditional operation by switch or float switch
- Entirely submersible - Snap-off strainer base for easy maintenance - Pump and switch are stand alone products - Sealed efficient,long life motors | - Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft - Anti-Airlock protection - Exclusive moisture tight seals - Marine grade blocked wiring |
Marin<span text-align:-webkit-center;white-space:normal;background-color:#ffffff;"="">e 60ft, Medical, Pond, Water Research, Solar Water System, etc.

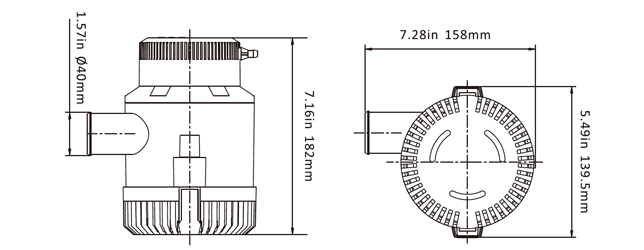

DIMENSIONS
STANDARD PUMP CONFIGURATIONS| Model | Flow Rate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G3500-01 | 2872 GPH | 12 V | 25.0 A | 25.0 A | 23' (7 m) | 3' (1 m) | 1-1/2" | 2.10/2.37 kg |

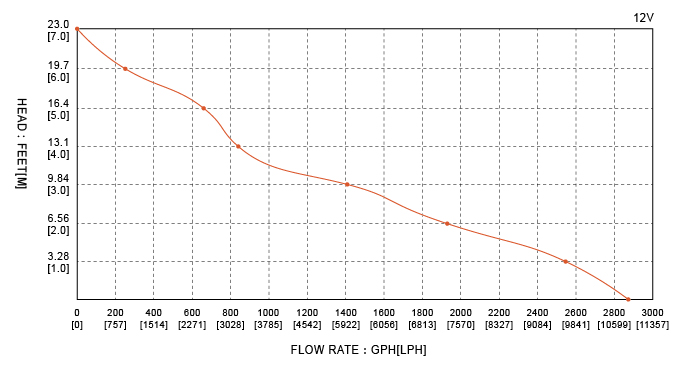

PERFORMANCE
| | | | GPH | LPH | OPEN | 19.7 | 2872 | 10868 | 0 | 12 | 20.4 | 2556 | 9672 | 1 | 12 | 21.1 | 1933 | 7315 | 2 | 12 | 21.9 | 1406 | 5321 | 3 | 12 | 22.8 | 844 | 3194 | 4 | 12 | 23.6 | 631 | 2388 | 5 | 12 | 24.4 | 255 | 965 | 6 | 12 | 25 | 0 | 0 | 7 |
|
|
|
| Key | Description | Quantity |
| 1 | Tapping Screw | 6 |
| 2 | Wire Buckle | 1 |
| 3 | Pump Cover | 1 |
| 4 | Motor | 1 |
| 5 | Seal 1 | 1 |
| 6 | Motor Cover | 1 |
| 7 | Seal 2 | 1 |
| 8 | Impeller | 1 |
| 9 | Pump Housing | 1 |
| 10 | Strainer | 1 |
