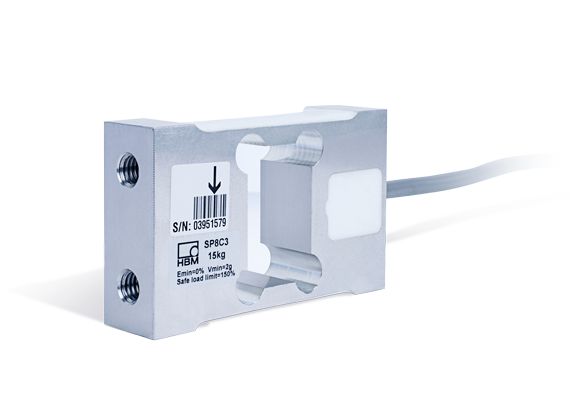

SP8 Single-Point Load Cell: A Compact and Cost-Effective Solution for Multi-Head Combination Weighers
The SP8 single-point load cell has been optimized for utilization in dynamic weighing applications and, due to its compact design, can be integrated into every multi-head combination weigher. It facilitates easy mounting on the front face. The load cell is built for capacities ranging from 5 to 100 kg and provides precise results owing to its C3 accuracy class. The aluminum SP8 enables a shortened period for weighing with its minimal settling times, making it the optimal choice for filling applications of any kind.
Maximum capacities: 5 kg, 8 kg, 15 kg, 30 kg, 50 kg, and 100 kg
Accuracy class: C3
Degree of protection: IP67
80 mm x 50 mm dimensions
Frontal mounting
It has a shielded connection cable.
It comes with IP67 dust and water protection.
It can perform off-center load compensation.
Precise results are ensured thanks to a low temperature sensitivity.
