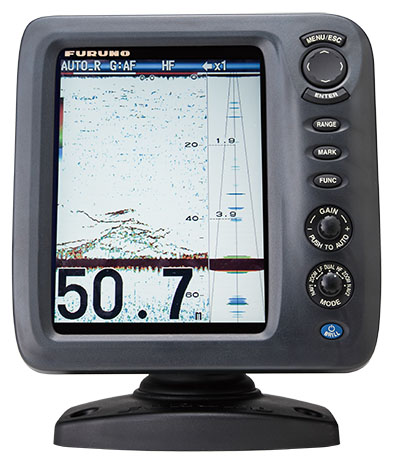

5.7" COLOR LCD FISH FINDER FCV-628
High resolution fish echoes with RezBoost™ technology!
FCV-628 uses revolutionary new RezBoost™ technology, providing an incredible boost in resolution and target separation, utilizing a compact narrowband transducer.
Features

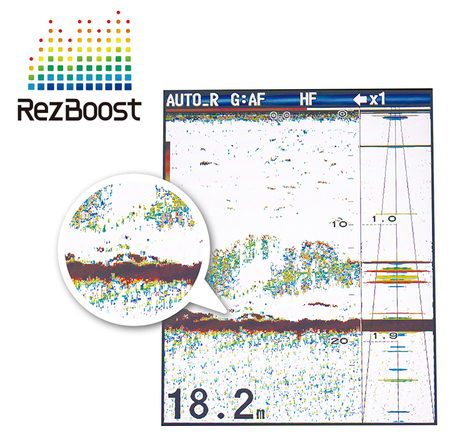

Dual-frequency fish finder equipped with revolutionary new RezBoost™ signal processing technology
Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost™ technology.

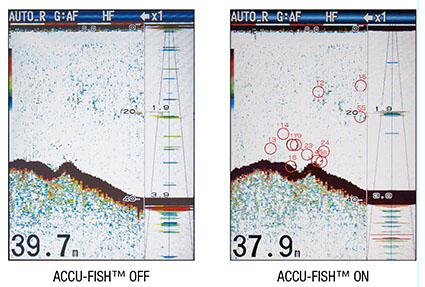

ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology

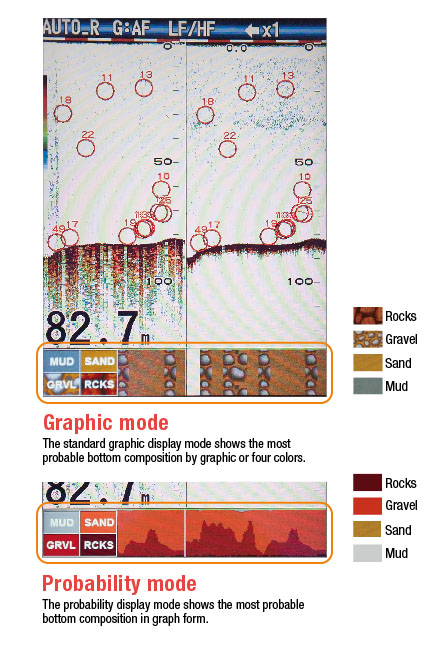

Bottom Discrimination - Analyze bottom structure
Provides an at-a-glance recognition of bottom composition with four types of graphical displays
(Rocks/Sand/Gravel/Mud) when connected to a supported thru-hull or transom mount transducer.
White Line feature - Discriminate fish lying near the bottom
The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish distincly.
Configurable Alarm function (depth, fish echoes, etc.)
Share and display information on a chart plotter
FURUNO's TLL (Target Lat/Lon) output allows you to interface the FCV-628 with your FURUNO chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type).
Requires a chart plotter.
Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)
Specifications
DISPLAY
Display unit:5.7" TFT color LCD
Pixel number”VGA 480 x 640
FISH FINDER
Frequency:50 and 200 kHz
Transducer:600 W/1 kW
Range Scale:2-1200 m
Pulselength & PRR:0.04 ms-3 ms, Max 3,000 pulse/min
Display Mode
Single frequency (50 or 200 kHz), Dual-frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom Discrimination, ACCU-FISH™, RezBoost™
ACCU-FISH™
Bottom Discrimination
OTHERS
Waterproofing:IP56
Power Supply:12-24 VDC: 1.2-0.6 A
Size:207(H) x 170(W) x 132 (D)
Weight:Bracket Mount: 1.3 kg/Flush Mount: 0.9 kg

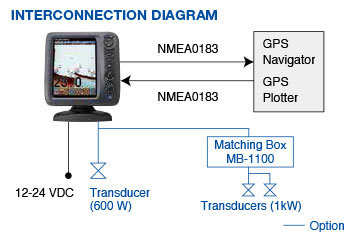

Interconnection Diagram
