FURUNO GP-330B

FURUNO GP-330B

Product Detail

GPS/WAAS RECEIVER ANTENNA GP-330B



A high performance CAN bus GPS Receiver designed for any type of vessel.

The GP-330B is a high performance GPS Receiver designed for any type of vessel. This compact and cost-effective receiver offers extremely accurate position fixes, within 3 meters with the WAAS mode activated. The GP-330B is capable of data output in CAN bus/NMEA2000 format, making it an ideal GPS sensor for use with NavNet 3D systems. The sensor comes with all of the hardware required for deck- or mast-mounting solutions.


Features
  • Straightforward "Plug and Play" installation.
  • High Accuracy, 14 Parallel Channel Receiver with Twelve Dedicated GPS Channels and Two Dedicated SBAS (WAAS/EGNOS/MSAS) Channels
  • NMEA2000 Certified GPS Antenna Sensor
  • Fast Start Up (1 minute Cold Start Time-to-First-Fix)
  • Position updated every second
  • Unique "Pin-Enabled" Termination Resistor allows simple NMEA2000 Backbone or Drop Wiring configurations
  • Space-saving installation
  • Ideal position-fixing sensor for NavNet 3D series

  • Direct connection to any Furuno DRS

Specifications

GPS / SBAS (WAAS/EGNOS/MSAS)

Receiving Type:Twelve discrete channels,C/A code, all-in-view, SBAS (WAAS/EGNOS/MSAS)
Receiving FrequencyL1（1575.42 MHz）
Accuracy

GPS: 10 m, MSAS: 7 m, WAAS: 3 m







PLOTTER



   Chart:WGS-84, NAD-27 and others







OTHERS
Waterproofing:IEC60529 IP56















               Power Supply

12 VDC、max 0.175 A

Weight:0.22　kg

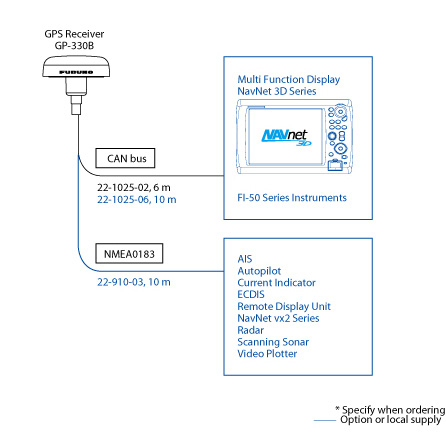

                                                                                                        Interconnection Diagram
