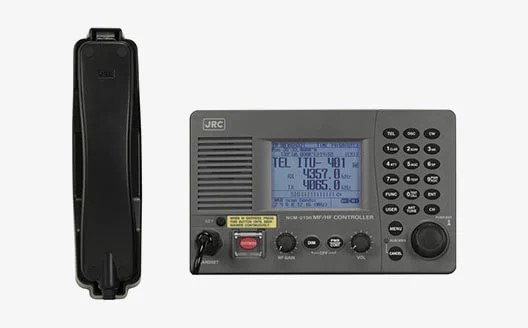

MF/HF Radio Equipment JSS-2150/2250/2500
Features
The JSS2150/2250/2500 MF/HF Class A DSC radio equipment features an intuitive user interface and a highly reliable circuit that enables allmode continuous full power operation.
Class A 6CH DSC watch-keeping built-in
The MF/HF has Digital Selective Calling (DSC*) as standard with a built in Class A 6CH DSC watchkeeping receiver. You can transmit and receive digital selective calls for quick and efficient establishment of distress, urgency, safety and routine communication with other ships and coast stations.

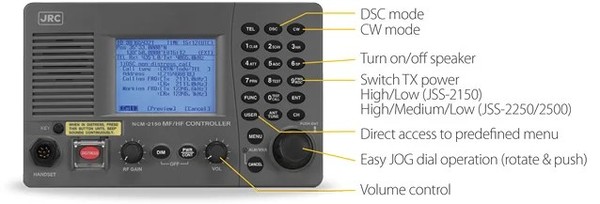

In distress situations, the MF/HF sends an alert once you press the distress button. The integrated DSC watch-keeping receiver monitors distress alarms through continuous scanning of distress frequencies.MF/HF controller settingsThe MF/HF controller uses a 3.8inch high visibility LCD display, which you can adjust at your own convenience. The display has 10 dim settings and you can set the contrast up to 11 different levels. An integrated screensaver and the ability to assign a commonly used menu to a user key for direct access, are just a few of the possibilities.
Distress alerts
The MF/HF controller includes a prominent distress button, with features to prevent accidental activation. When in distress, you can send a DSC message instantly, transmitting your MMSI, position, time of position and nature of distress, enabling an immediate response for search and rescue efforts.
Digital audio
The MF/HF controller integrates an advanced digital audio amplifier, which increases the amount of power, making the receiving message loud and clear.
Connect a remote control
Getting a second operation controller onboard is easy. Connect a second MF/HF controller to the transceiver and position the controller at a secondary location on the ship. The second MF/HF station is fully operable and you can transfer saved channel data to optimize your operation.
Interfacing Unified design
The MF/HF controller design allows you to carry out all operations simply by using the same unified keyboard layout as found in JRC's VHF radiotelephone. The keypad is solid and responsive, which allows for
precise operation. The keys are also backlit, making it easy to operate in low-light settings on the bridge.
Flexible installation

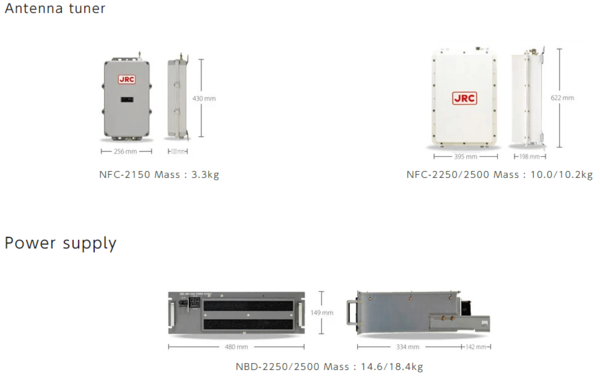

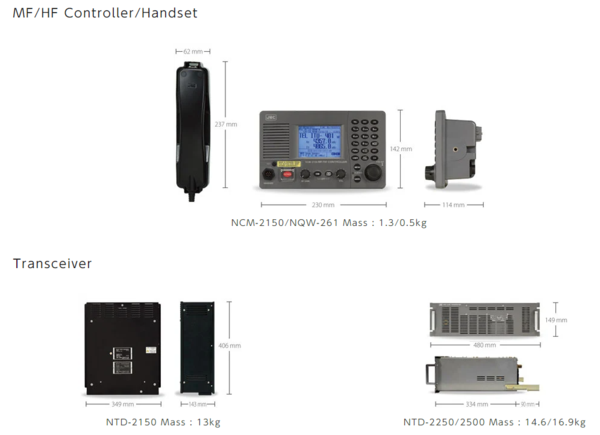

All MF/HF models are minimum configured as standard, consisting of a MF/HF controller+handset, transceiver and antenna tuner. The 150W model can be applied for non-solas vessels, but also configured with necessary options up to GMDSS A4 area. In contrast to the other two models, the 150W version has a smaller transceiver and antenna tuner which allows for a more flexible installation approach in confined spaces.
High power models

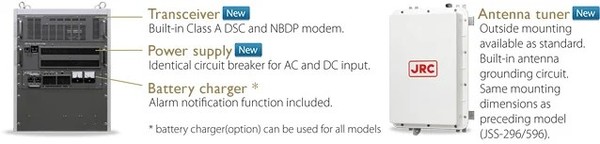

When more power output is required, simply select the 250W or 500W version. Additionally, the new 250W and 500W version come with a redesigned antenna tuner, transceiver and power supply designed to fit into an optional 19 inch rack :NCU-515A.
GMDSS console
The MF/HF models can be installed together with a set of Inmarsat-C: JUE-87 in the optional GMDSS console: NCU-531A. Optionally the controller and handset of VHF radiotelephone: JHS-770S/780D can be installed in the same console.
In the box
MF/HF controller+Handset
Transceiver
Antenna tuner
MF/HF controller to transceiver cable (5 m)
Power supply (250W/500W only)
Manual

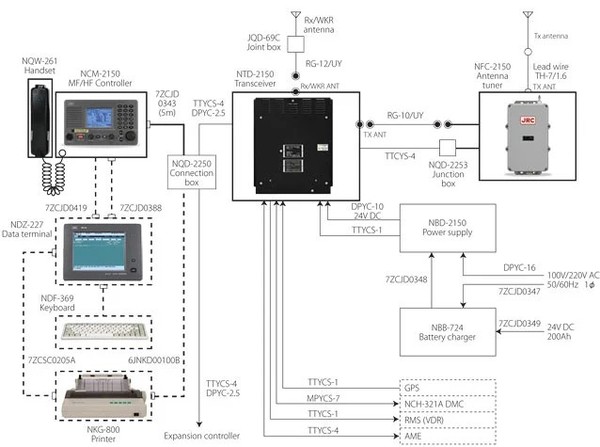

JSS-2150 (150W model) system diagram

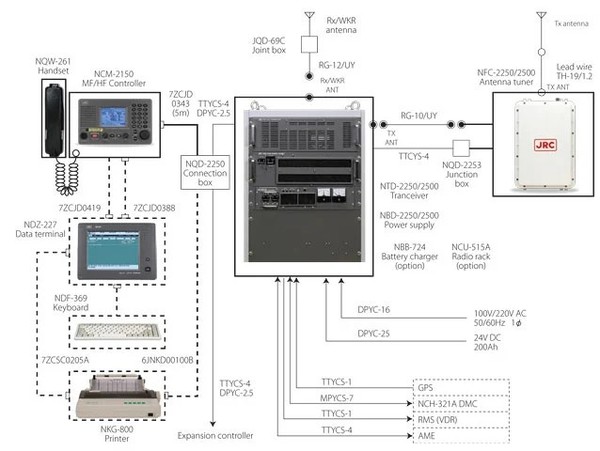

JSS-2250/2500 (250/500W model) system diagram
