Navigational Echo Sounder JFE-680
Outline
High-resolution and clearly display (10.4"TFT LCD)
Built-in printer for copy of the echogram history
High accuracy and high reliability
Depth data for last 24 hours in memory to play back the past sounding information
Meets IMO standards MSC.74(69) Annex 4
Specifications / Components

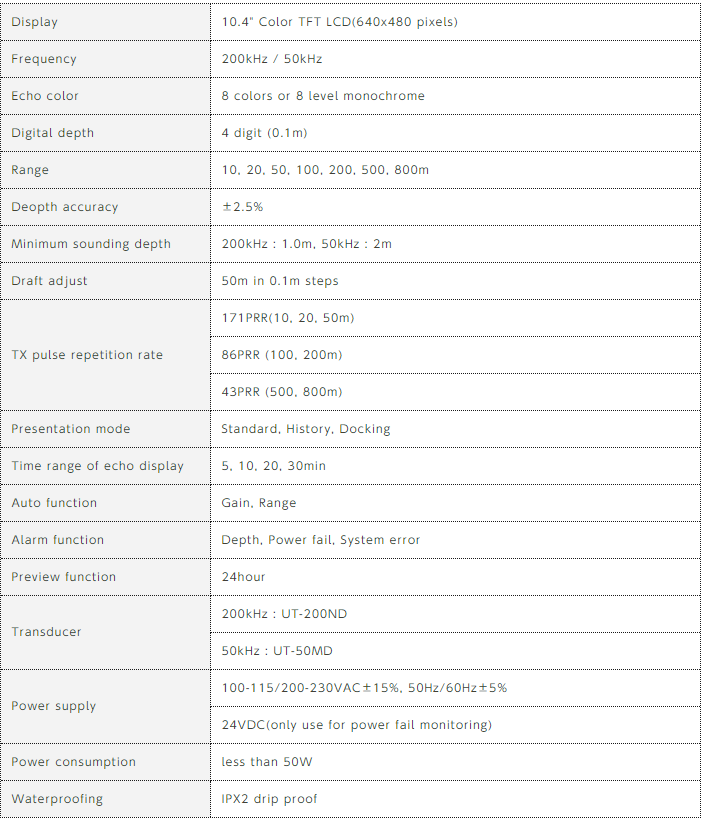

Specifications

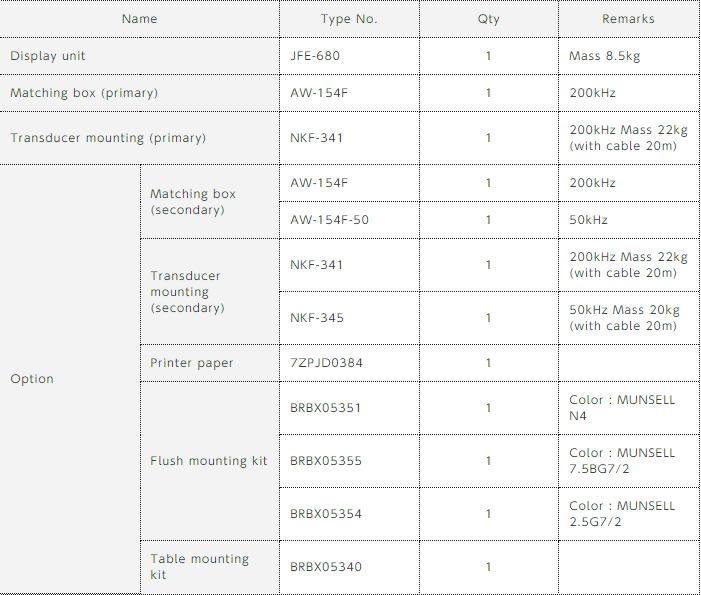

Component

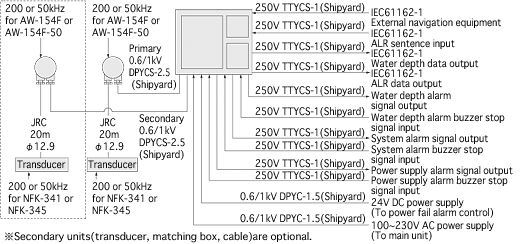

Schematic Diagram

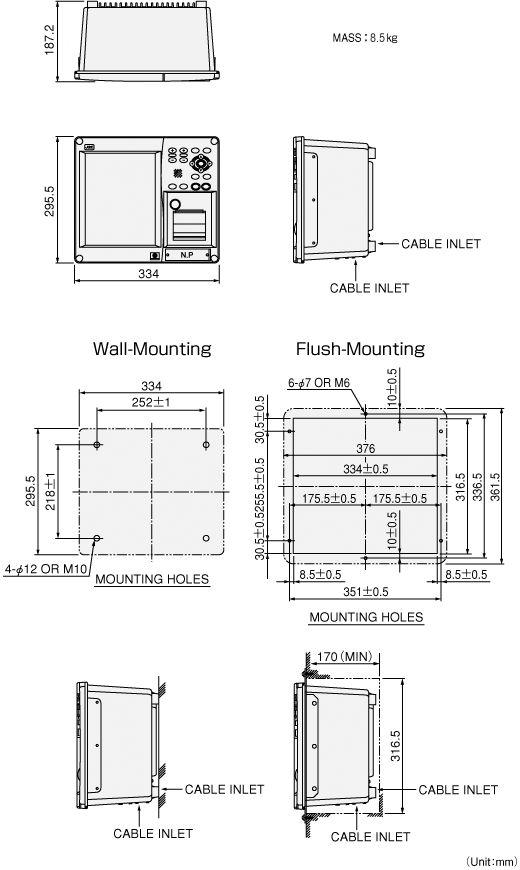

Dimension
