Solar Modules 20W
Description:
FDS offgrid high quality solar modules are particularly designed for solar power systems generating ecofriendly and reliable energy from the sun. It provides an ideal solution for various occasions where no grid connection.
FDS off-grid modules have been working globally delivering limitless energy
Applications:Mainly for SMS, solar lightings, field working, rural electrification, solar pumping system, telecommunication tower, remote monitoring system, etc.
Voltage:12V/24V System and other rate customized
Warranty:5 years for product, 25years for performance
Features:Front: glass, Frame: Aluminiume Aloy, Junction Box:IP65
20W Solar Modules, 20W Solar Panels, 12V Solar Modules, 12V solar Panels, Monocrystallin Solar Modules, Monocrstalline Solar Modules, Solar Modules, Solar Panels, PV Modules, PV Panels
Temperature Coefficients
| Type | Monocrystaline | Polycrystalline |
| Nominal Operationg Cell Temprature | NOCT | ℃ | 45+/-2 | 45+/-2 |
| Voltage Temperature Coefficient(Voc) | α | %℃ | -0.32 | -0.32 |
| Current Temperature Coefficient(Isc) | β | %℃ | 0.055 | 0.055 |
| Power Temperature Coefficient(Pmpp) | γ | %℃ | -0.39 | -0.39 |
Mechanical Data
| Solar Cell | Monocrystaline, 76.5x34.83mm | Polycrystalline, 76.5x39.18mm |
| Arrangment | 36cells (4*9) | 36cells |
| Front Class | 3.2mm Tempered | 3.2mm Tempered |
| Frame | Anodized Aluminium | Anodized Aluminium |
| Max. Static Snow Load, Front | 5400Pa | 5400Pa |
| Max. Static Wind Load, Back | 2400Pa | 2400Pa |
| Junction Box | IP67 | IP67 |
| Cables&Connectors | As per Required | As per Required |
Electrical Data STC:Irradiance 1000W/m³(module temperature 25℃ AM1.5)
| Monocrystaline | Polycrystalline |
| Module Type |
|
| FDS020-12M | FDS020-12P |
| Nominal Peak Power | Pmax | Wp | 20 | 20 |
| Minimum Power Tolerance | ⧍Pmax | % | ±3 | ±3 |
| Max. Power Voltage | Vmp | V | 19 | 18.4 |
| Max.Power Current | Imp | A | 1.06 | 1.09 |
| Open-circuit Voltage | Voc | V | 23 | 22.6 |
| Short-circut Current | Isc | A | 1.14 | 1.18 |
| Module Efficiency | ηm | % | 15.7 | 14.1 |
| Operating Temperature |
| ℃ | -40~+85 | -40~+85 |
| Max Series Fuse Rating |
| A | 6 | 6 |
| Max System Voltage | DC | V | 1000 | 1000 |
| Weight |
| KGS | 1.4 | 1.5 |
| Dimension |
| MM | 370*345*25 | 410*345*25 |

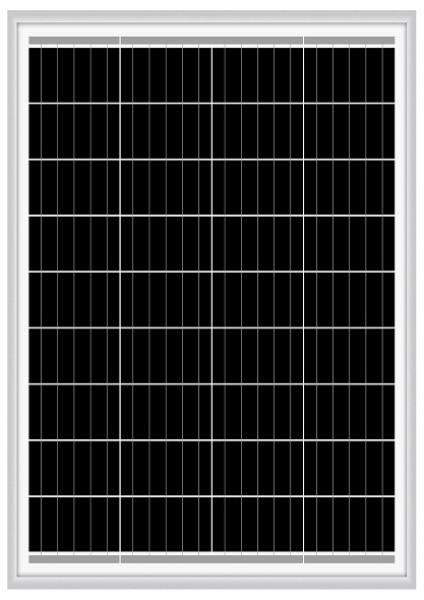

Monocrystalline Solar Panel

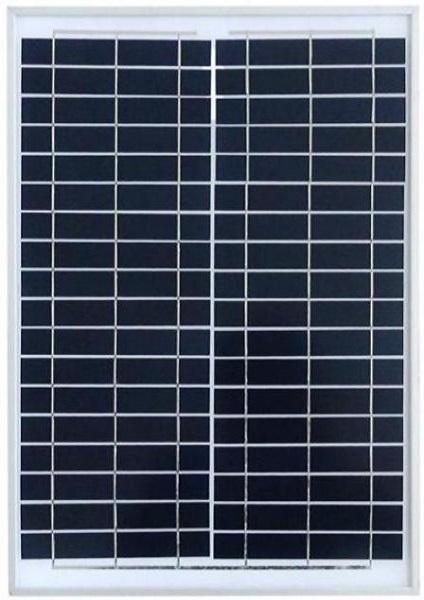

Polycrystalline Solar Panel
